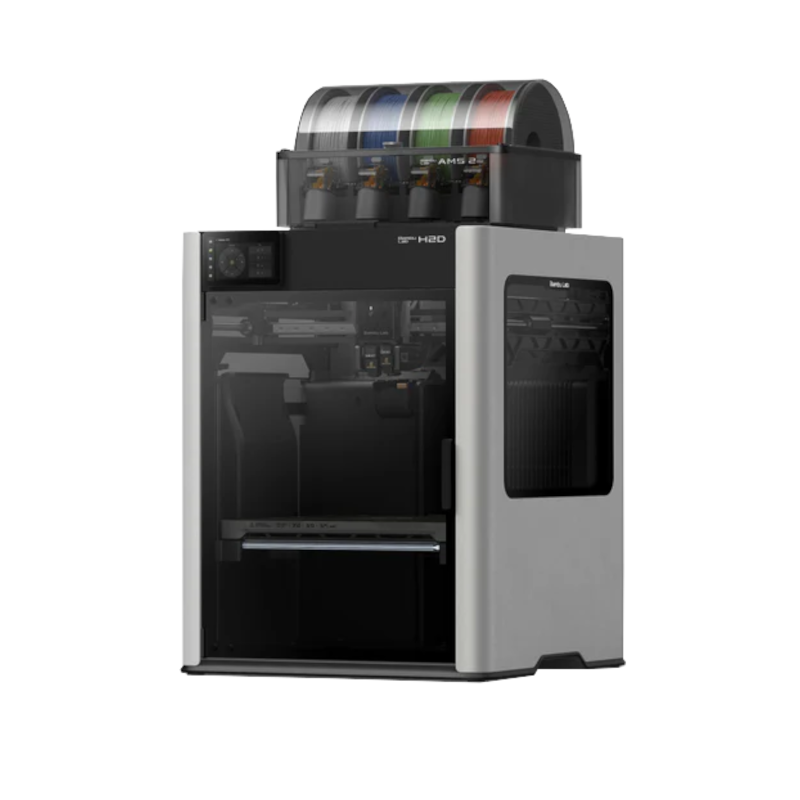

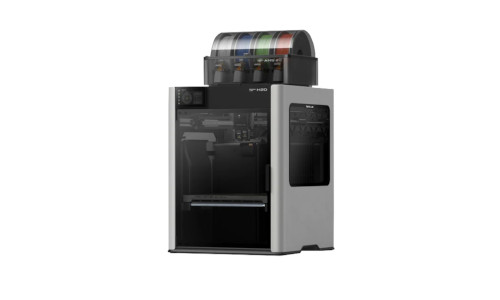

Bambu Lab H2D AMS Combo 3D Printer

Bambu Lab H2D AMS Combo 3D Printer

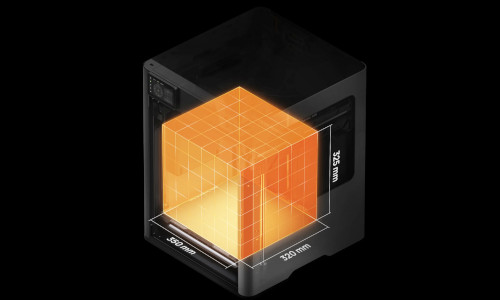

Bambu Lab H2D AMS Combo is a professional 3D printer working in FDM (Fused Deposition Modeling) technology with a working area of ​​350 x 320 x 325 mm equipped with the AMS system. Bambu Lab H2D AMS Combo 3D Printer is equipped with a heated chamber, dual head and automatic calibration. The optional High Flow hotend allows printing at a speed of up to 600 mm / s. Thanks to the heated chamber up to 65 ° C and the head reaching up to 350 ° C, Bambu Lab H2D AMS Combo 3D Printer allows printing from advanced and technical materials. The printer is also equipped with the AMS system, which ensures automatic material feeding, drying and filament control. Additionally, the AMS system allows printing from 4 materials at the same time.

ASK A QUESTION

Double head

Bambu Lab H2D AMS Combo has a dual head that allows for multi-material and multi-color printing. The dual head of the printer allows for printing from two materials, which makes it possible to create designs that go beyond traditional production. Combining standard materials with high-performance materials allows for lower production costs and increases material efficiency.

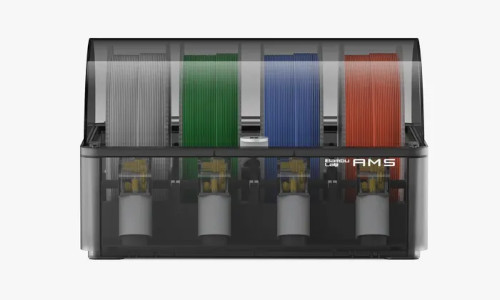

AMS system

Bambu Lab H2D AMS Combo 3D Printer is equipped with the AMS system, which allows for filament management and multi-material printing. The AMS system allows for handling up to 4 filament spools simultaneously. Additionally, the AMS system has active drying at temperatures up to 65°C, which, combined with hermetic storage and precise, automatic filament feeding, ensures maximum reliability and high quality 3D printing. The AMS system automatically recognizes Bambu Lab filaments, which allows for optimization of print settings and drying without user intervention.

Printing from support materials

The AMS system and dual head enable printing with support material, which is essential for printing elements with complex geometry. The material drying function in the AMS ensures optimal storage conditions, which guarantees a perfect print every time.

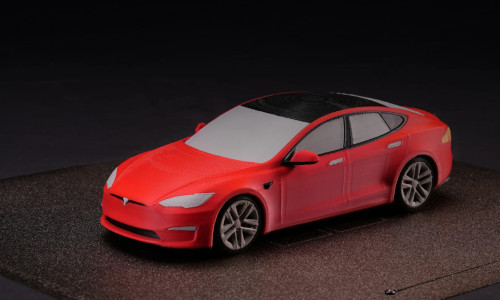

Efficient multi-color printing

With its dual head and AMS system, Bambu Lab H2D AMS Combo enables efficient multi-color printing that allows you to create multi-color elements. Using several materials during a single 3D printing process allows for automation that significantly speeds up production time.

High precision

Bambu Lab H2D AMS Combo 3D Printer is equipped with a high-resolution 5 µm sensor system, which, in combination with CoreXY kinematics, provides 50 µm movement accuracy. The finished 3D prints are characterized by a smooth surface, sharp and clear edges, and a perfect fit of the elements printed at high speed.

Material flow monitoring

Unlike older systems with a single filament end sensor, the Bambu Lab H2D AMS Combo allows for comprehensive material flow monitoring. 15 sensors are placed along the entire path from the AMS system to the nozzle, creating an intelligent network that constantly tracks five key parameters: material feed rate, filament tension, filament end position, extruder thermal environment, and dynamic extrusion pressure.

Printing from technical materials

Bambu Lab H2D AMS Combo 3D Printer has an actively heated work chamber up to 65°C and a print head reaching a temperature of 350°C, which allow printing from technical and composite materials. Additionally, Bambu Lab H2D is equipped with a work table that allows reaching a temperature of up to 120°C, which prevents warping.

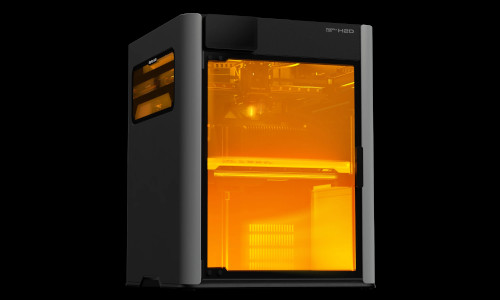

Solid construction

Bambu Lab H2D AMS Combo is equipped with a solid construction made of cast aluminum and high-quality hardened steel components that guarantee stability and high durability.

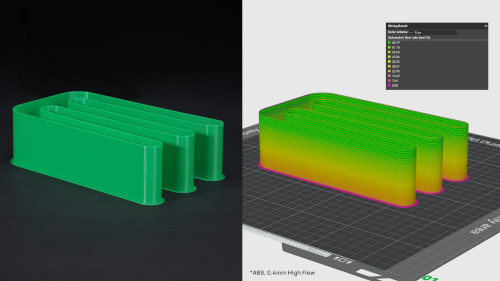

Printing speeds up to 600mm/s

Bambu Lab H2D AMS Combo 3D Printer can be equipped with an optional high-flow hotend that allows for fast printing at speeds of up to 600 mm/s. The hotend is designed to provide high efficiency and uninterrupted high-speed printing regardless of the print size and shape.

Built-in camera

Bambu Lab H2D AMS Combo is equipped with a built-in camera, which is supported by AI. The built-in camera allows for continuous monitoring of the 3D printing process, immediately detecting material build-up and extrusion failure.
