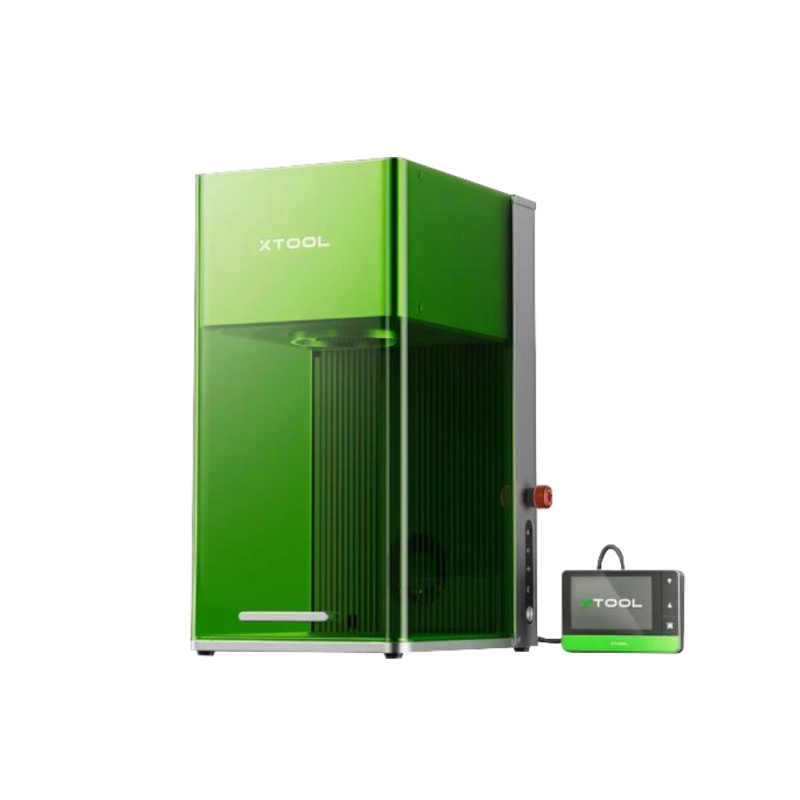

xTool F1 Ultra Laser Engraver

xTool F1 Ultra Laser Engraver

The xTool F1 Ultra is a high-quality laser engraver with a working area of ​​220 mm × 220 mm, enabling precise cutting and engraving at speeds of up to 10,000 mm/s. The xTool F1 Ultra allows you to cut and engrave materials such as paper, wood, leather, fabrics, ceramics, marble, metal, and acrylic.

ASK A QUESTION

The creation process

The xTool F1 Ultra is an easy-to-use device that allows for quick cutting and engraving of objects. The entire process involves four steps: design, placing the design on the prepared object using a camera, starting the engraving or cutting process by pressing a button, and finishing the job.

Dual laser

xTool F1 Ultra is equipped with a double laser - a fiber laser designed for engraving metals and a diode laser designed for engraving basic materials such as paper, wood, leather, MDF, stainless steel, acrylic, bamboo, fabric, dark glass, ceramics, marble and cement.

Diode laser:

• Power: 20W
• Laser spot size: 0.08 mm × 0.1 mm
• Supported materials - laser cutting: paper, wood, leather, MDF, felt, opaque acrylic materials
• Supported materials - laser engraving: paper, wood, leather, MDF, stainless steel, acrylic, bamboo, fabric, dark glass, ceramic, marble, cement, brick, metal
• Class 4 laser safety
• Laser cutting / Laser engraving

Fiber laser:

• Power: 20W
• Laser spot size: 0,03 mm × 0,03 mm
• Supported materials - laser cutting: brass, stainless steel, aluminum
• Supported materials - laser engraving: stainless steel, aluminum, brass, silver, plastic, platinum, titanium, gold
• Class 4 laser safety
• Laser cutting / Laser engraving

20W high-power laser

The xTool F1 Ultra has a 20W diode laser and a 20W fiber laser, which enable deep engraving and cutting of materials such as metal, wood and acrylic.

Cutting thin metal

The 20W fiber laser allows you to cut brass sheet up to 0.4 mm thick, stainless steel sheet up to 0.3 mm thick and aluminum sheet up to 0.2 mm thick.

Cutting wood 15mm and acrylic 12mm

The 20W diode laser allows you to cut wood up to 15 mm thick and acrylic up to 12 mm thick.

Colorful engraving

Both diode lasers and fiber lasers allow for quick color engraving on metal.

Auto Streamline™

The xTool F1 Ultra in the Conveyor Bundle or Deluxe Bundle versions is equipped with a conveyor belt feeder, which is ideal for high-volume production. Using the conveyor belt feeder increases the working area to 220 mm x 500 mm, significantly increasing efficiency and speeding up production.

Built-in camera

The xTool F1 Ultra features a built-in camera that simplifies the creation process. The built-in camera automatically recognizes the shape of materials placed on the conveyor belt, while the xTool Creative Space software helps you precisely engrave designs on each piece.

Speed ​​up to 10,000 mm/s

xTool F1 Ultra enables precise cutting and engraving at speeds up to 10,000 mm/s in materials such as paper, wood, leather, fabrics, ceramics, marble, metal, MDF, felt, acrylic.

Large work area

The xTool F1 Ultra has a large working area of ​​220 x 220 mm and 220 mm × 500 mm with a belt feeder, which is significantly larger than other fiber laser engravers.

Engraving on curved objects

The xTool F1 Ultra laser engraver is equipped with a special Curve™ engraving function that automatically creates 3D models on curved surfaces, allowing you to perfectly engrave any pattern.

RA2 Pro Rotary Module

The xTool F1 Ultra Deluxe Bundle version includes the RA2 Pro rotary module, which is perfect for engraving curved objects such as glasses, mugs or Christmas tree baubles.

Control panel

The xTool F1 Ultra is equipped with a touchscreen control panel that can store up to 7 GB of project files and allows for independent control of the device, allowing engraving or cutting without using a computer or the internet.

Smoke removal

The xTool F1 Ultra laser engraver has an efficient smoke extraction system that quickly removes smoke and dust generated during engraving, ensuring a safe working environment.

Fully enclosed cover

The xTool F1 Ultra is equipped with a fully enclosed cover that protects against harmful diode laser and fiber laser light.

Intelligent workflow

The xTool F1 Ultra laser engraver boasts numerous innovative features, including automatic focusing, optimal parameter selection, and automatic alignment and filling. Additionally, it features an automatic planning function that, thanks to a unique algorithm, optimizes the laser engraving path to maximize project completion time.

xTool F1 Ultra Applications

Jewelry

Events

Production

Souvenirs

Set comparison

The xTool F1 Ultra engraving machine is available in three versions: Standalone, Conveyor Bundle and Deluxe Bundle.

F1 Ultra - Standalone

• xTool F1 Ultra
• Touchscreen controller
• Pipe
• Power adapter
• Power cable
• USB cable
• Slatted panel
• Screwdriver
• L-shaped positioning piece
• Key
• Lint-free cloth
• Material pack
• Quick start guide
• Safety Instructions

F1 Ultra - Conveyor Bundle

• xTool F1 Ultra Standalone
• xTool Auto Streamline Conveyor for F2 Ultra

F1 Ultra - Deluxe Bundle

• xTool F1 Ultra Standalone
• xTool Rotary Attachment 2 Pro - RA2 Pro
• xTool SafetyPro™ AP2 exhaust air filter
• xTool Auto Streamline Conveyor for F2 Ultra
